Current models · clear-front revision

The entrance stays open.

Two side legs, one rear leg. The entrance faces the open bay; the hazer sits behind the sphere. These images come from the actual 3D assemblies.

All six schematic sheets · PDF Four editable 3D models Step-by-step build plans Full parts list · CSV

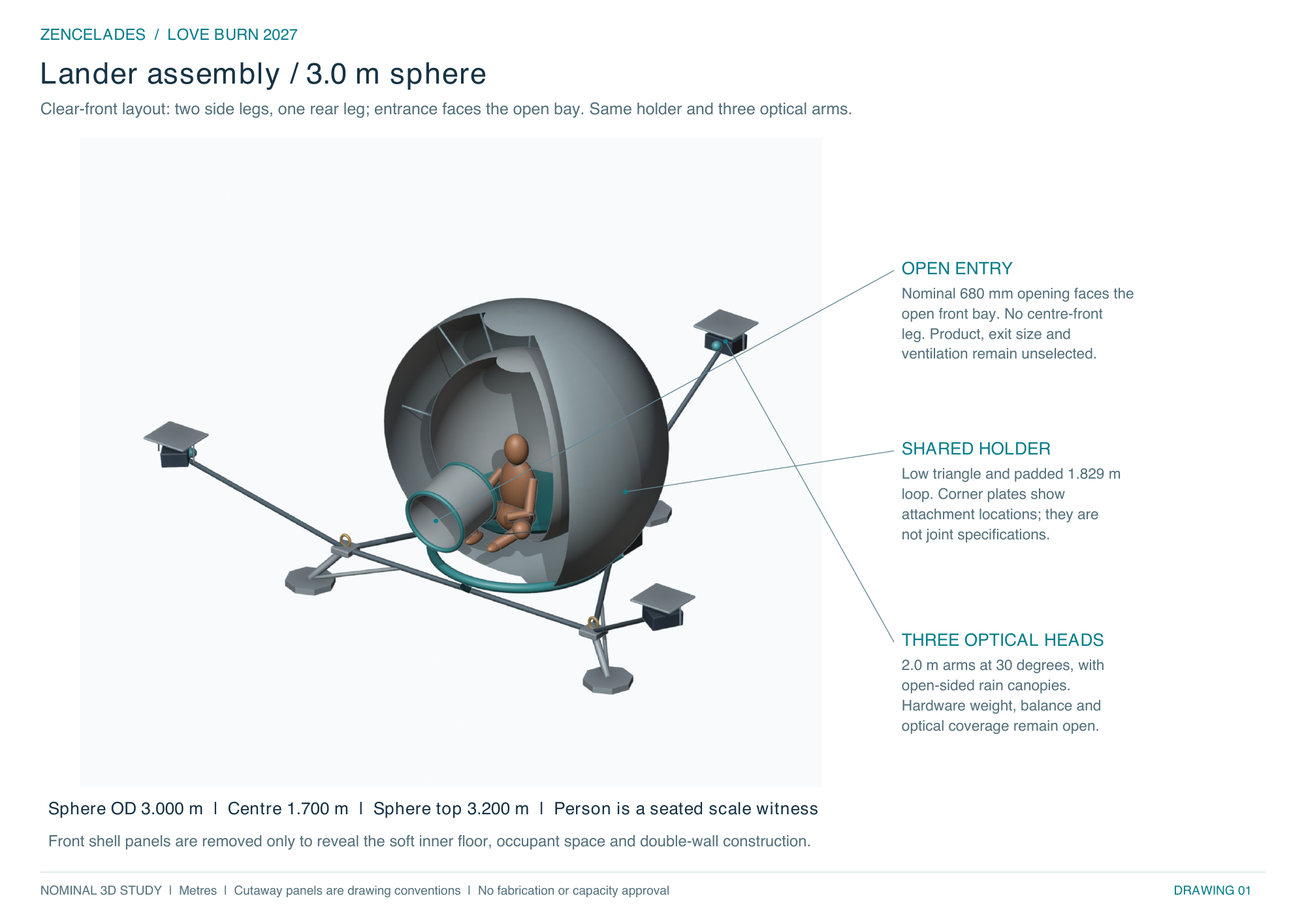

Corrected lander: entrance between two side legs, third leg at the rear, triangle and three projector arms — **Lander · open front**
Download lander image · PNG

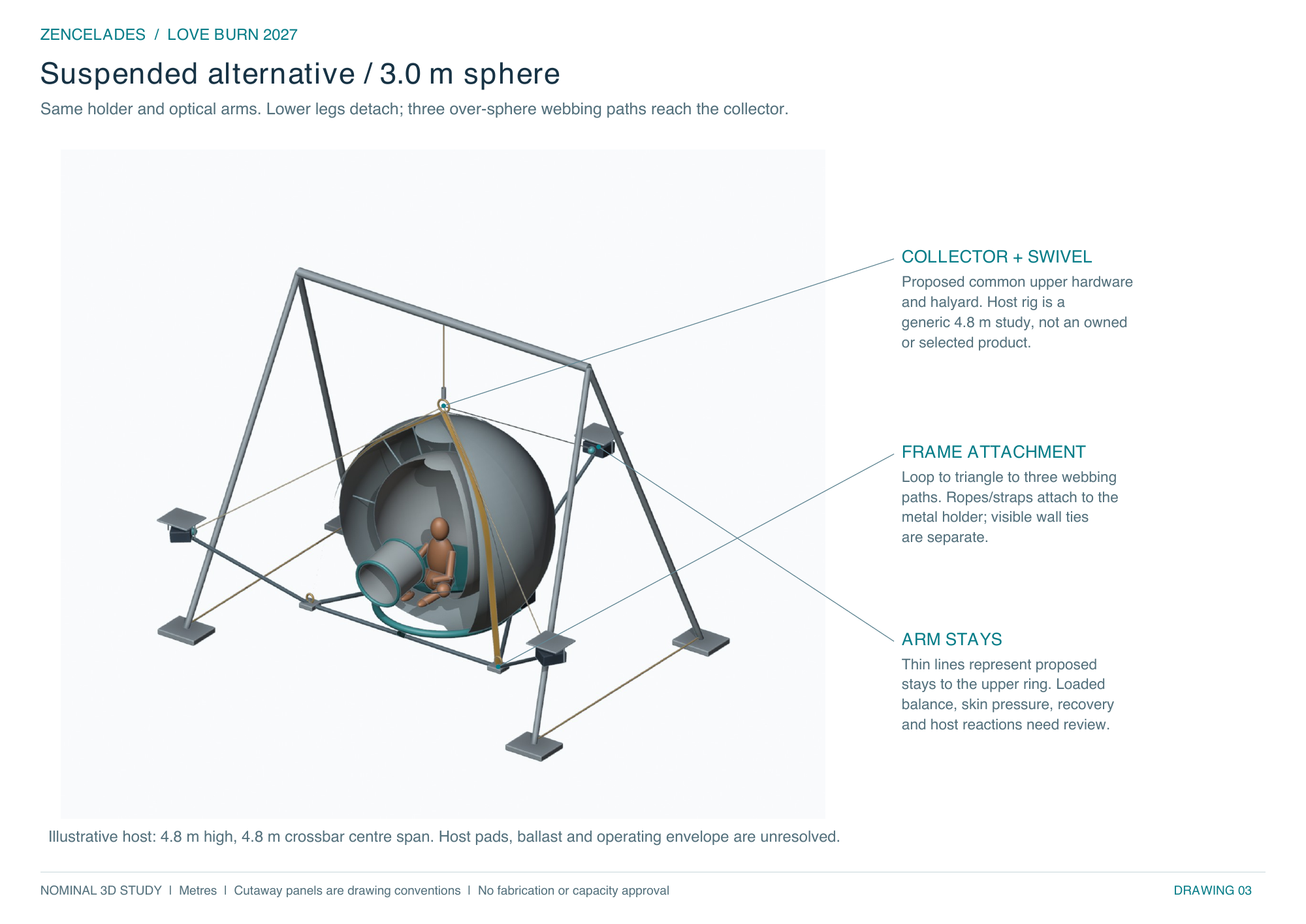

Suspended sphere in an aerial rig with over-sphere webbing, top collector and three projector arms — **Suspended · same holder**
Download suspended image · PNG

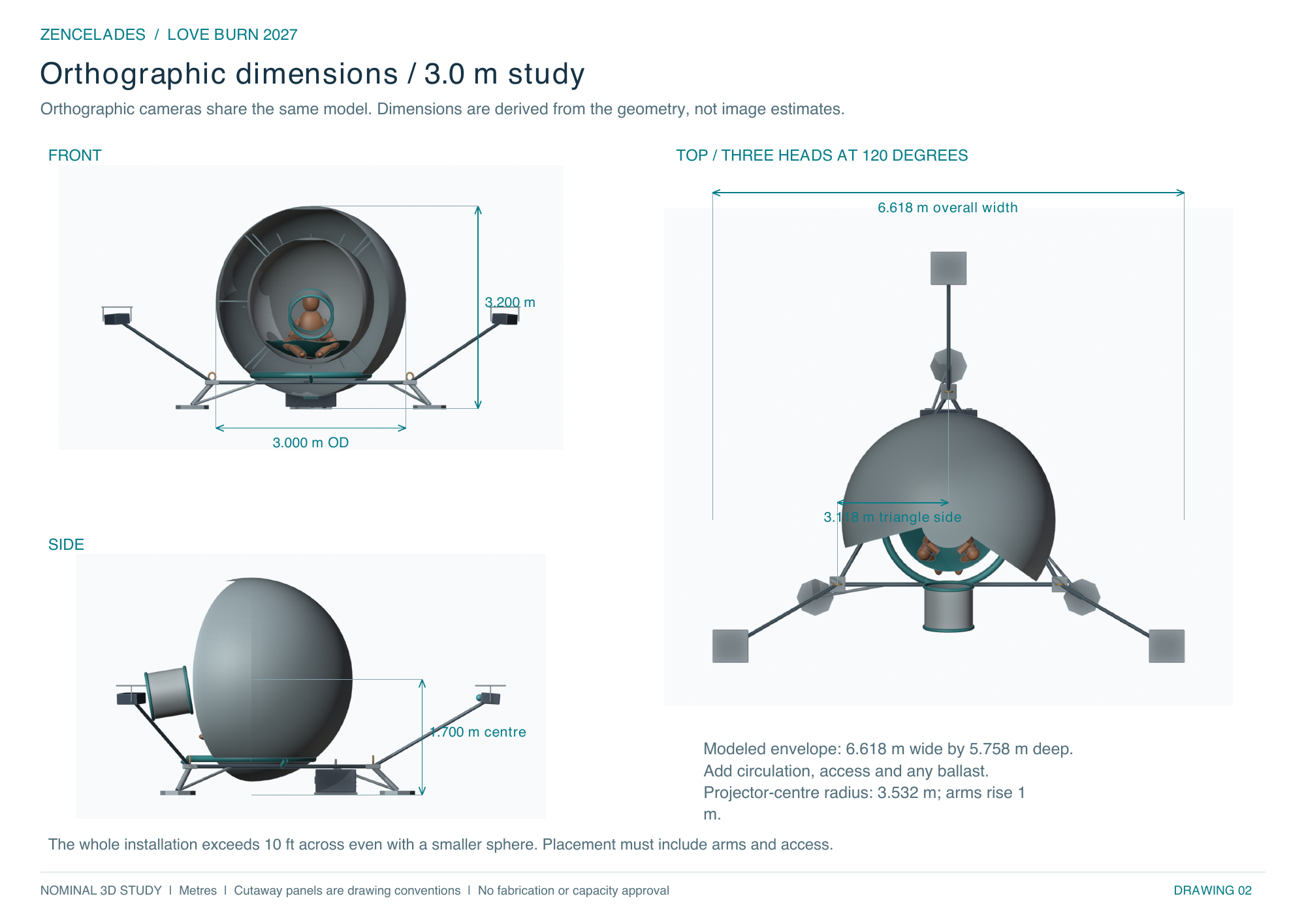

Front, side and top orthographic model views with dimensions — **Plan and elevation**
Download dimensions · PNG

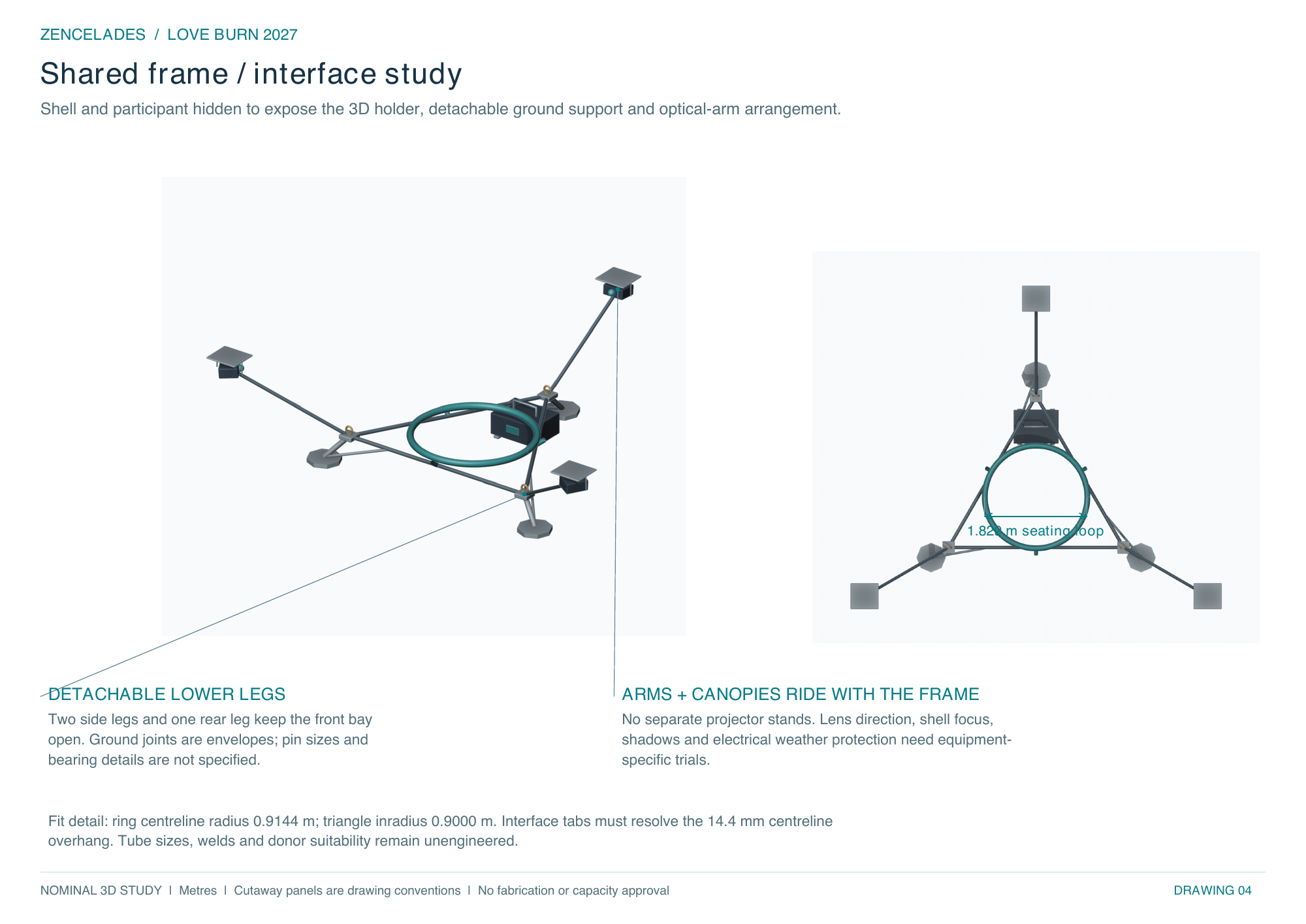

Exposed triangle, padded support ring, side and rear legs and projector arms — **Frame and mounting interfaces**
Download frame details · PNG

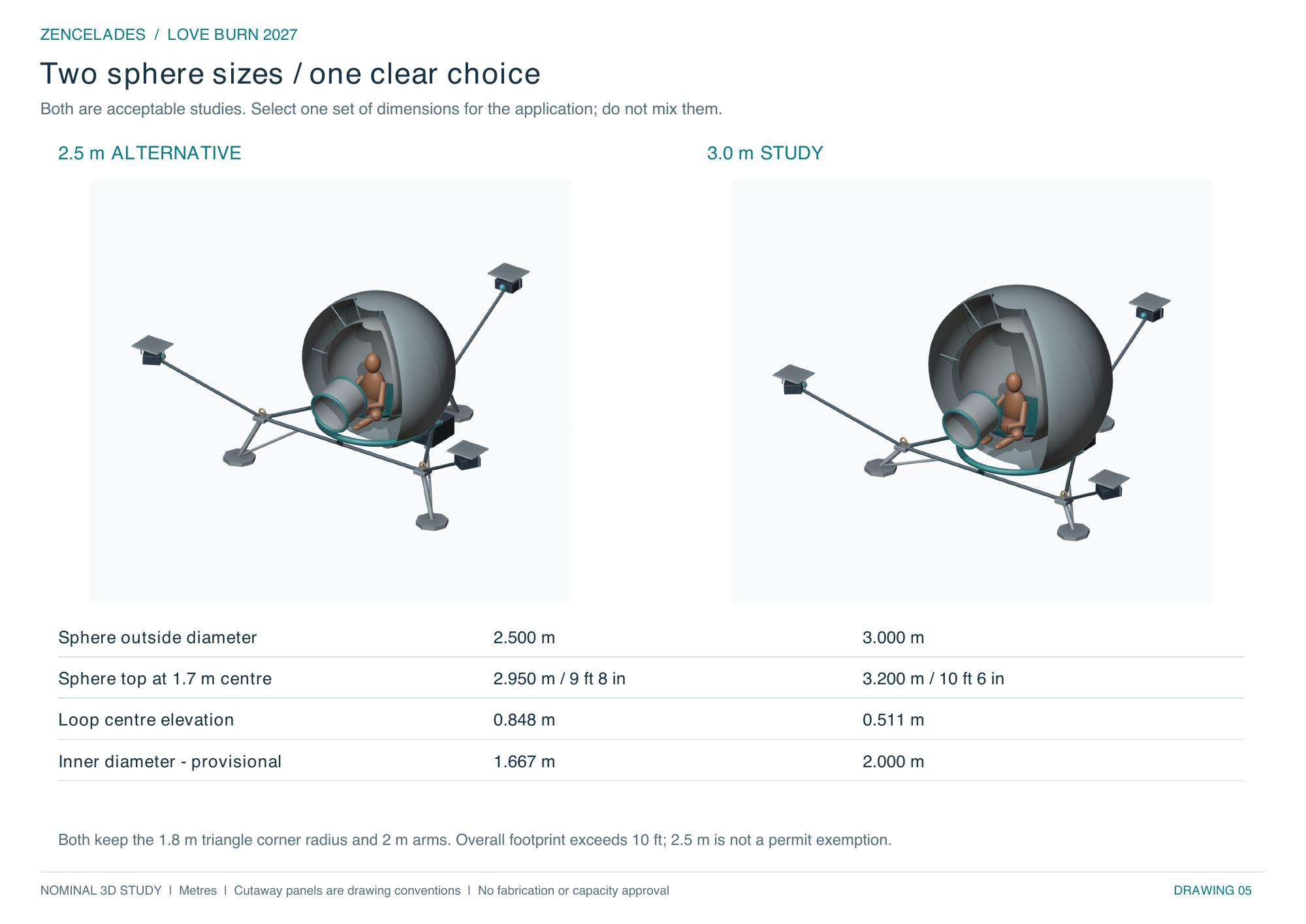

2.5 metre and 3 metre sphere models compared side by side — **Both sphere sizes**
Download size comparison · PNG

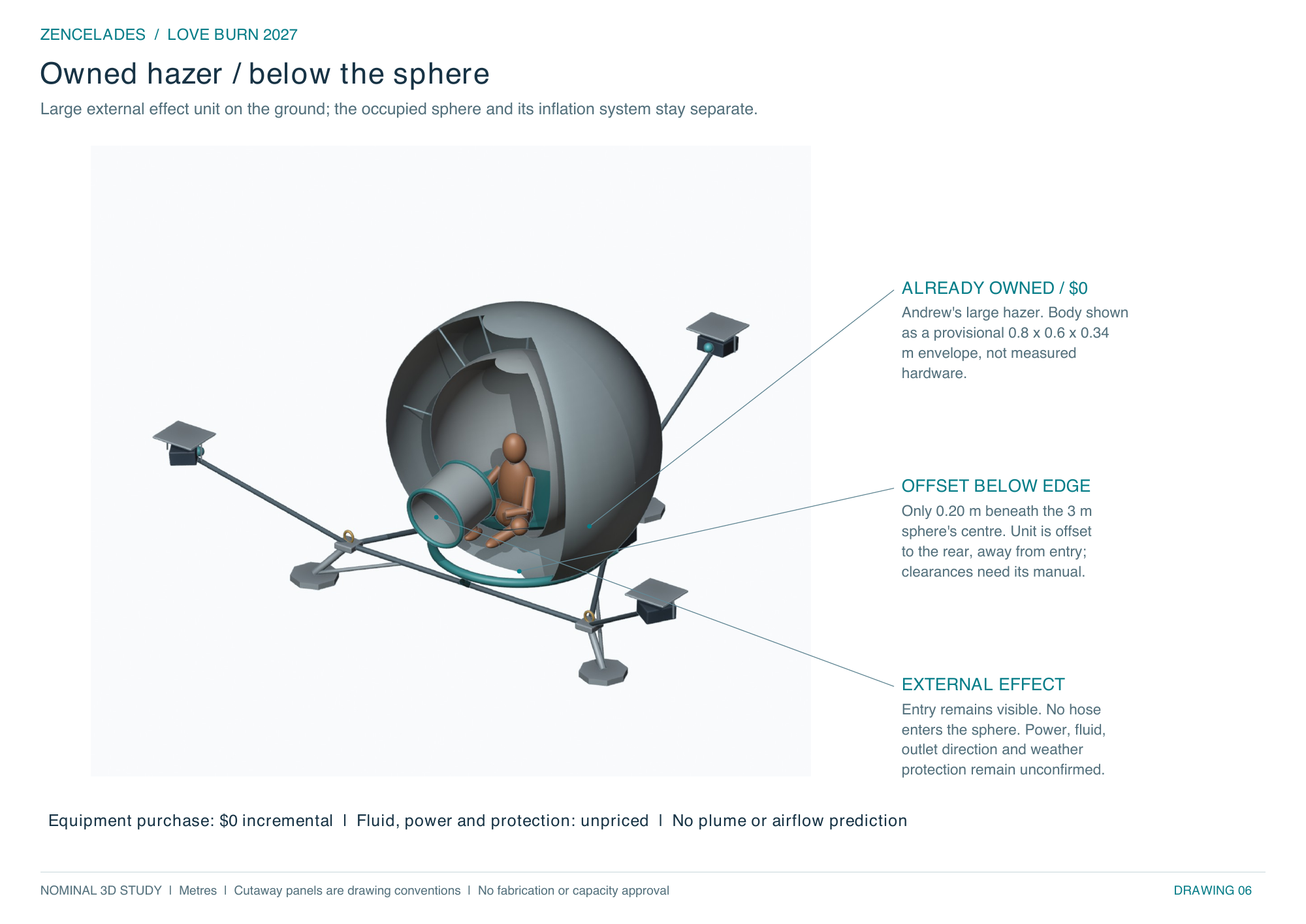

Owned external hazer placed behind and below the sphere, away from the entrance — **Owned external hazer**
Download hazer placement · PNG

Four model assemblies.

GLB files are portable 3D models; Blender files preserve the editable assemblies. The renderings are dimensioned concept studies. Material sizes, joints, occupied support and rigging still require design verification.

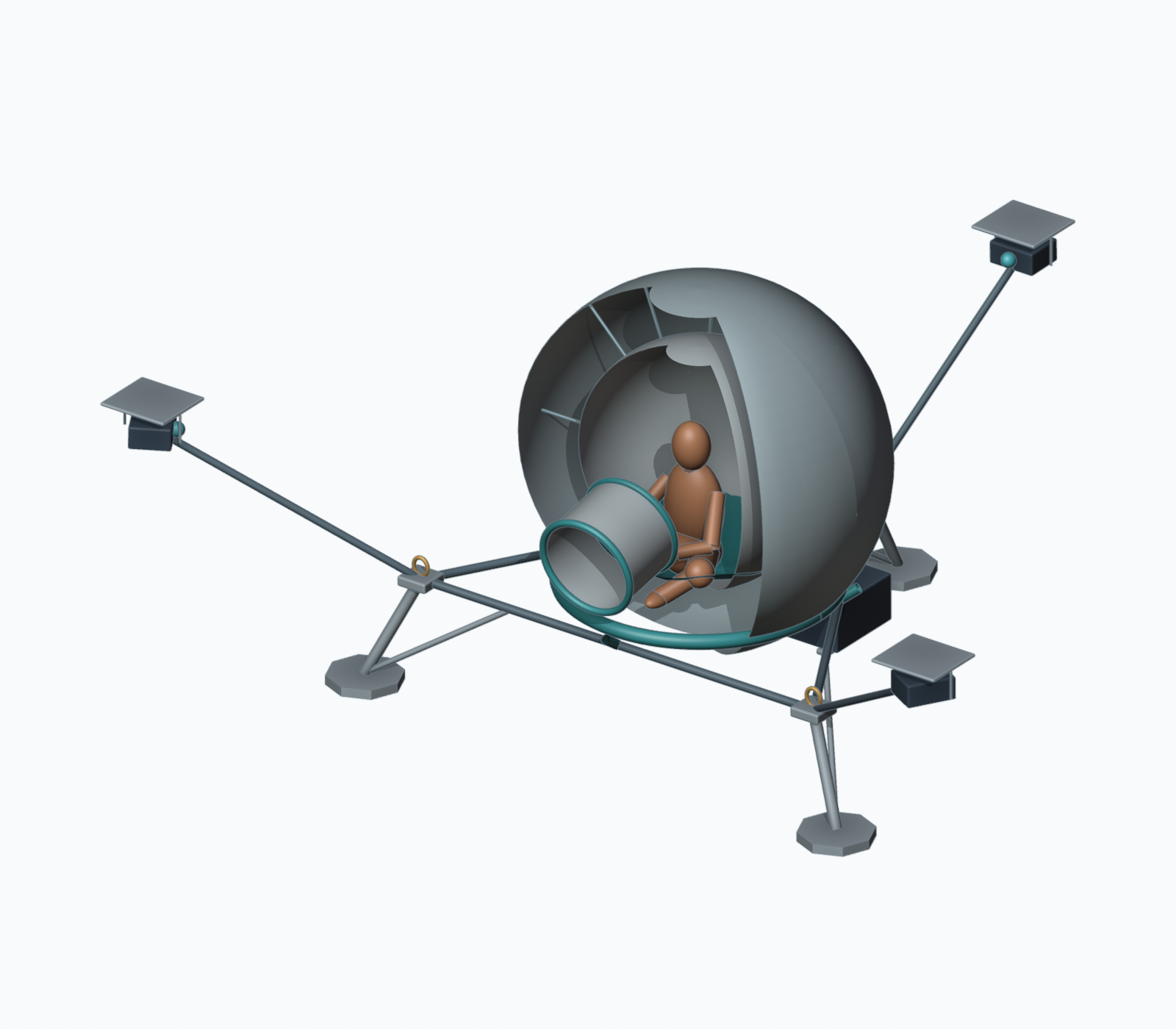

2.5 metre sphere on the corrected lander — **2.5 m lander**
Download GLB · Blender source

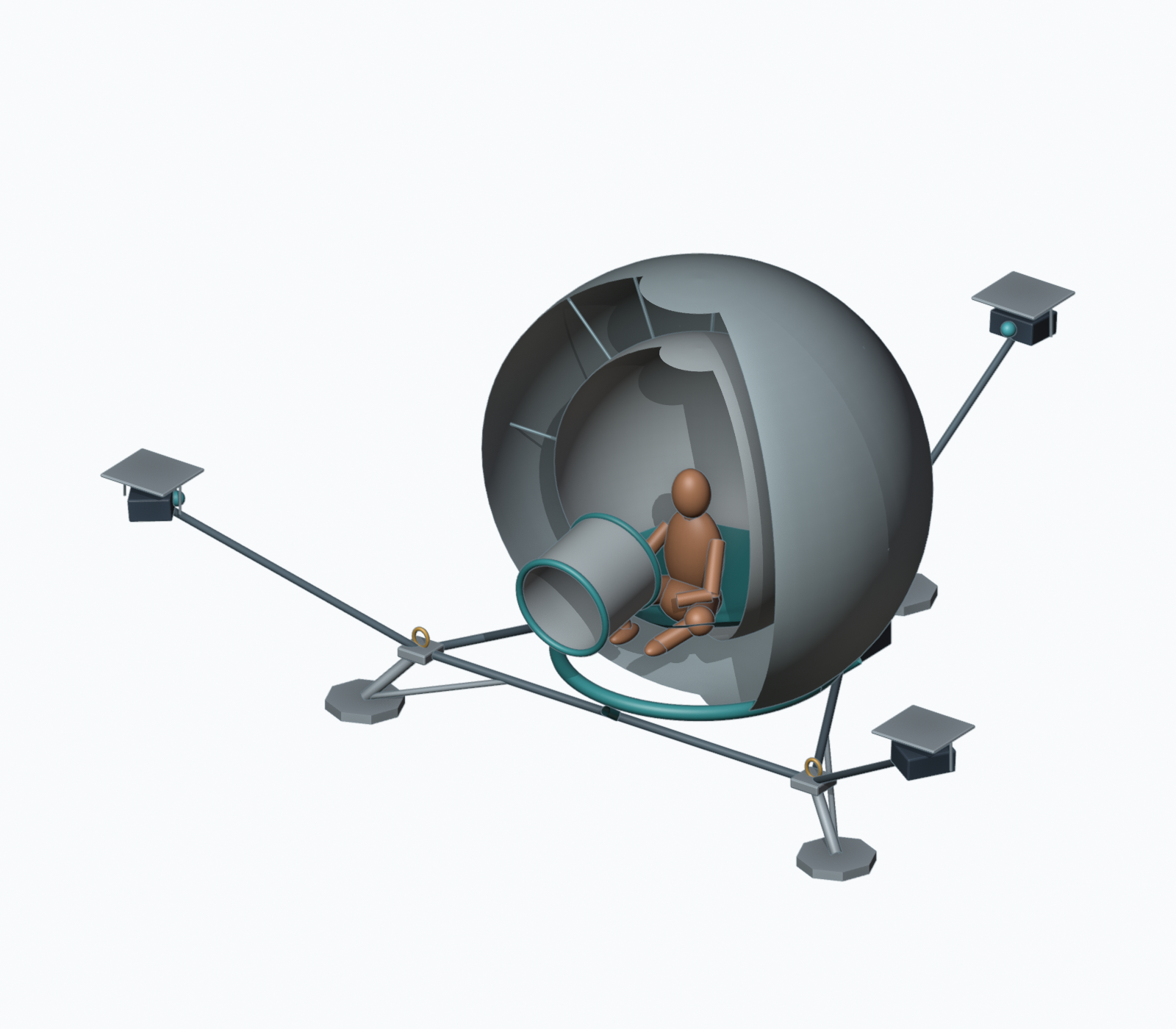

3 metre sphere on the corrected lander — **3 m lander**
Download GLB · Blender source

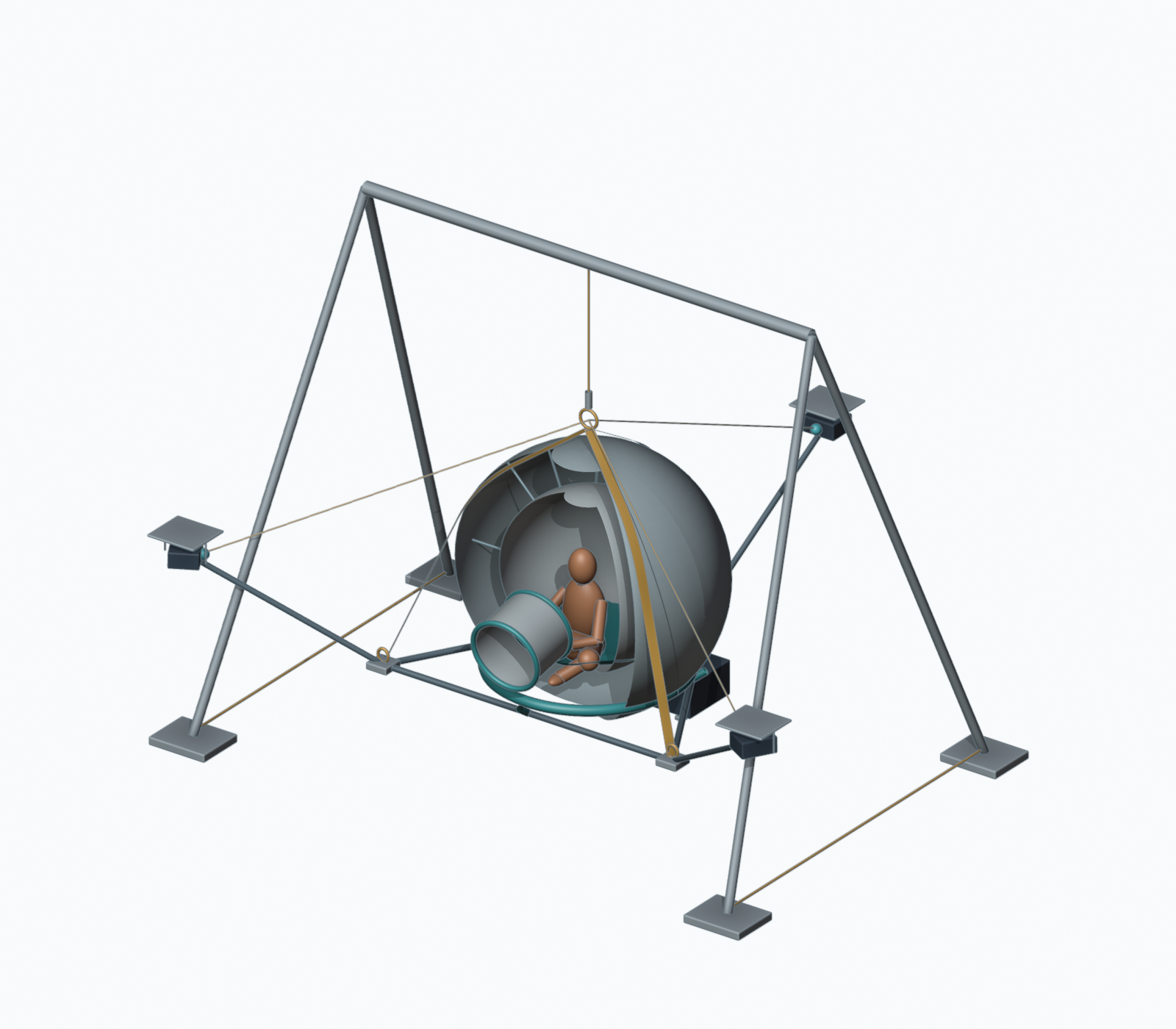

2.5 metre suspended sphere assembly — **2.5 m suspended**
Download GLB · Blender source

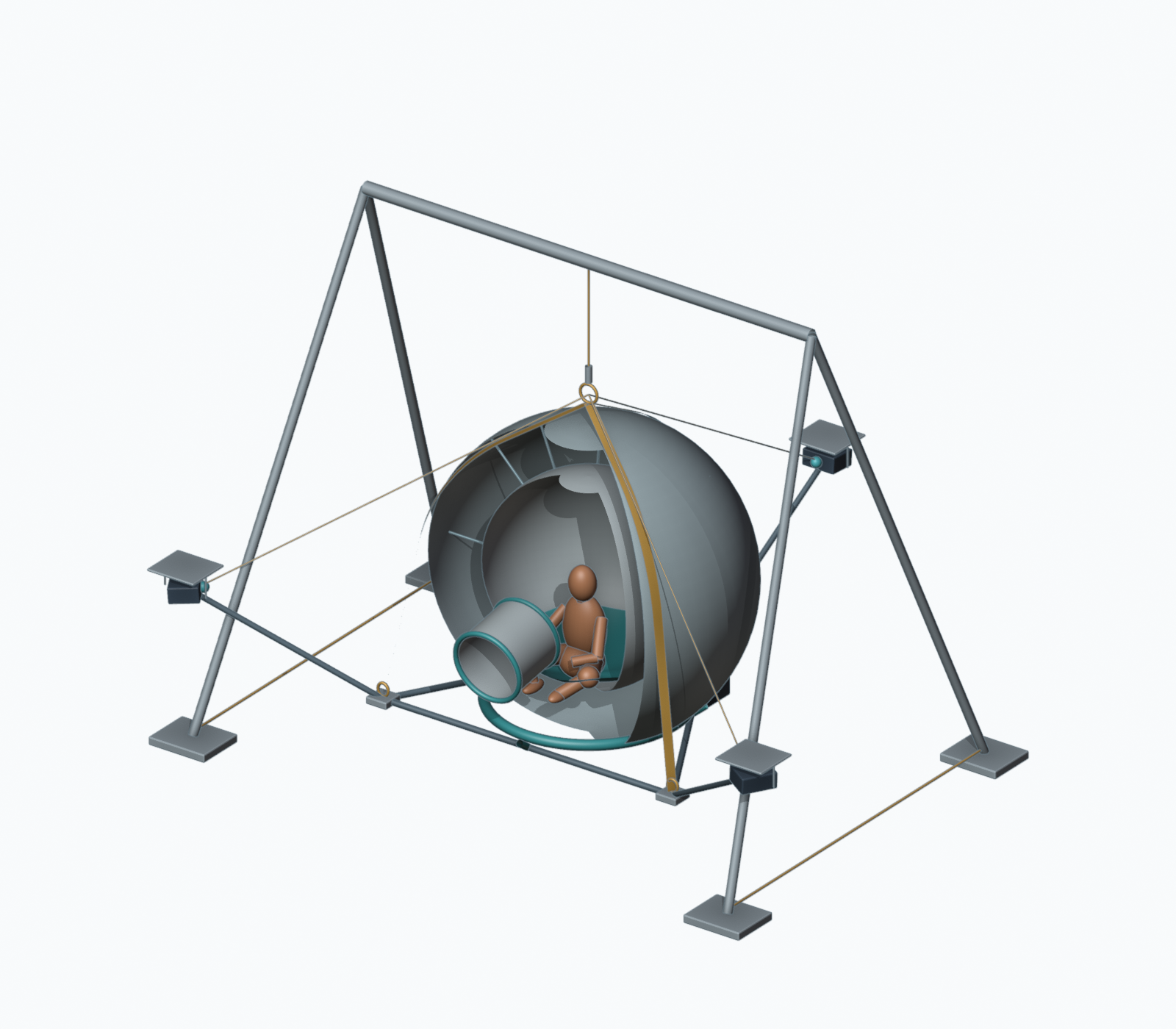

3 metre suspended sphere assembly — **3 m suspended**
Download GLB · Blender source
